Maths - Monads and Algebras

Algebra for a Monad

Given a monad: T: C -> C , 1 =>η T <=µ T denoted by the triple <T,η,µ>

An algebra for a monad <T,η,µ> is an object A∈C equipped with an 'action': a morphism θ:TA->A so that the following diagrams commute:

Axioms of an algebra A: action triangle   action square

Relationship to an Algebraic Theory

If the monad T represents an algebraic theory.
Then an 'algebra for a monad' represents a model for the algebraic theory, that is, an implementation of it.

Monad an algebraic theory Syntax Holds all the operations that may be needed. Let us form algebras
Algebra for a monad a model for the algebraic theory Semantics An implementation of those operations. Let us evaluate (collapse) algebras

Informal Introduction

We can think of the endofunctor of a monad in terms of an expression diagram of expression

We are first introduced to 'algebra' as a part of mathematics where we can use letters (variables) to stand in for numbers that are unknown or we don't wish to use the literal value. We can then use this to express axioms like: x+y =y+x.

Here we relate algebras to monads. The monad will allow us to build up expressions and the algebra will allow us to evaluate it back to a single value.

In order to construct a monad, in this case, we start with an endofunctor A -> T A. This takes a variable and gives us an expression in that variable.

Examples:

We can compose these by substituting one in the other, like this

So where x appears in the first we have substituted (x+2) which is the second.

We now have the two natural transformations:

Which gives us a monad.

On the remainder of this page we investigate questions such as:

Monads and Algebras

There is a connection between monads, adjunctions and algebras. monad algebras

An algebra can have two levels:

Algebras and Coalgebras

Algebras have a structure based on products, so a subalgebra is a quotient. Coalgebras have a structure and substructure based on sum.

Monad as Algebraic Theory

A monad <T,η,µ> can represent an algebraic theory as might be given by function signatures and axioms.



Category of Algebras

We can generalise this concept to a category of algebras (alg T) where the objects are the morphisms θ:TA->A

Monadisity

Given any category 'C', is it an alg T for some T?

There is a whole category of algebras with two extremes:

Adjunctions and Algebras

Here we will talk about 'an algebra' to talk about specific mathematical 'equational theories' (The theory of fields is not equational because not every element has a multiplicative inverse).

An 'equational theory' is called a 'T-Algebra'. This gives rise to a free -| forgetful adjunction between sets and the category of models of the theory.

The 'initial algebra' for an endofunctor P:S->S is a 'least fixed point' for P. Such algebras can be used in computer science to model 'recursive datatypes'.



Type Theory Carrier Category Expression Kleisli Eilenberg-Moore
  C T CT CT
Type A (object) T A A (carrier set) TAoverA
Term A->B (arrow)   A ->T B A -> B


Nat

constructors:
Z
S n

obj := n

arr := n->n

S S ... Z

obj := n

arr := n->expr n

obj := expr n

arr := n->n







Finite Group

constructors:
generators
permutations

obj := set
(only one object)

arr := permutation

Any permutation that
can be generated by
a sequence of
generators.

obj := set

arr := set ->
all valid
permutations

obj := all valid
permutations

arr := permutation


Set

obj := set

arr := mapping








x

  Original Category Kleisli Eilenberg-Moore


Initial

initial algebras satisfy the induction proof principle and definition by recursion

least fixpoint for the endofunctor

Elements (carrier set) derived from constructor operations by closure when iterativly applying the constructors.

Terminal

definition by corecursion

greatest fixpoint for the endofuncor

Derived from the axioms.

Data vs. Structure   The initial algebra seems to concentrate on the carrier set and then the structure is added onto that. We can think of intial algbras as data types. The final algebra seems to start more from a pure structure. This structure might apply to any carrier set that implements this algebra.
Objects A A (carrier set) TAoverA
Arrows A -> B A ->T B A -> B
Diagram     eilenburgmoore
Example     monoid set
Composition   kliesli composition


F-algebras

F-algebras are discussed on this page.

Monads and Adjunction

Given a monad T on C is there an adjunction giving rise to it?

Every monad comes from an adjunction via its category of algebras

Example 1 - Set

For a finite set we can have seperate constructors for each element. In the infinite examples below the underlying set is defined inductivly but since this example is finite then we only need 'X' on the left side of the equation only. set
  Kleisli Eilenberg-Moore
  initial

terminal

one-point algebra

Object X = a() + b() + c() T XoverX
Arrow T = X X X->X
  Kleisli set EM Set
Syntax
Axioms

Example 2 - Natural Numbers

If we start with the natural numbers and some endofunction on them, then we can generate the initial and terminal algebras. natural numbers
  Kleisli Eilenberg-Moore
  initial terminal
Object

X = Zero() | Succ(X)

If we put in the usual notation for 'algebraic data types then we have to make:

  • Zero=(1 -> N)
  • Succ=(N -> N)

The algebraic type for natural numbers is:

N = 1+N

Although this notation is confusing in this case since, '1' represents zero and '+' represents disjoint union and not addition.

T AoverA
Arrow T(X) = least fixpoint of above
Zero+Succ(Zero())+Succ(Succ(Zero()))+...
A->A
  Kleisli natural numbers Eilenburg Moore natural numbers
Axioms if X=Y
then succ(X)=succ(Y)
0+A = A + 0 = A
A+B=B+A
(A+B)+C=A+(B+C)
  The functions zero and succ generate a carrier set, this has a structure in that it is ordered. Any algebra that obeys the axioms can represent the natural numbers.

Example 3 - Integers

Now extend the natural numbers example by adding negative numbers.
  Kleisli Eilenberg-Moore
  initial terminal
Object A T AoverA
Arrow T A->A
  kleisli integers EM Integers
Syntax A=zero()
A=succ(A)
A=pre(A)
0()->T
+(T,T)->T
-T->T
Axioms

if A=B
then succ(A)=succ(B)
and pre(A)=pre(B)

pre(succ(A)) = A
succ(pre(A)) = A

0+A = A + 0 = A
A+(-A) = 0
A+B=B+A
(A+B)+C=A+(B+C)

  The functions zero,succ and pre seem to generate the elements.

Example 4 - Rational Numbers

Now extend the natural numbers example by adding negative numbers.
  Kleisli Eilenberg-Moore
  initial terminal
Object

X =

f(0) = 1

f(n+1) = ½ f(n)

T AoverA
Arrow T A->A
  kleisli integers EM Integers
Syntax A=zero()
A=succ(A)
A=pre(A)
0()->T
+(T,T)->T
-T->T
Axioms

if A=B
then succ(A)=succ(B)
and pre(A)=pre(B)

pre(succ(A)) = A
succ(pre(A)) = A

0+A = A + 0 = A
A+(-A) = 0
A+B=B+A
(A+B)+C=A+(B+C)

  The functions zero,succ and pre seem to generate the elements.

Example 5 - Algebra from Syntax

Can we create an algebraic theory from a (BNF) abstract syntax tree like this:

BNF Element (Example)

E ::= E | E '+' E | E '*' E | '-' E | N
N ::= (0..9)+

where:

  • E is an expression in N.
  • N is a number.
expression
How can we construct an expression? Can we form a monad? expression monad

So a unit for a monad could be:

N -> E N

Can this construct an expression using this? This does not appear to specify where in the heirarchy of the expression where to put this value.

Stack

it is only a tree if your base functor is a product functor. When you have a sum functor as the base functor it more closely resembles a stack machine - http://stackoverflow.com/questions/13352205/what-are-free-monads

We could perhaps represent this with using multicategories like this: algebra syntax

Example 6 - Words - Monad for Monoid

On this page we discuss monoids in terms of a binary operation and an identity element, but there is another way to approach monoids (especially free monoids), that is as a singly linked list. singly linked list
We can convert between these notions of monoid using a 'fold' operation. fold

The underlying category has objects which are either:

The endo-functor 'T' maps from this object to itself, in this case it maps:

This endofunctor is equipped with two natural transformations:

  • unit µ: 1 -> T
  • multiplication (join) η: T×T -> T

Where,

  • µ removes the inner set of brackets - takes a list of lists and joins the inner lists
  • ηT adds brackets to each of the inner elements
  • T η adds brackets around the outside of an instance.
monad list

So from this we can see the effect of various transformations:

x -T-> (x)   T wraps element in list
x x-> (x)   η at x wraps element in list
(x,y) -T-> ((x),(y))   T takes each element of list and wraps it in a sublist
(x,y) Tx-> ((x,y))   η at T takes the whole list and wraps it in a sublist
(x,y) -Tηx-> ((x),(y))   T•η at x takes each element of list and wraps it in a sublist
((x,y)) x-> (x,y)   µ removes brackets - takes a list of lists and joins the inner lists
(((x,y))) Tx-> ((x,y))
  -T->
  -T->
  -T->

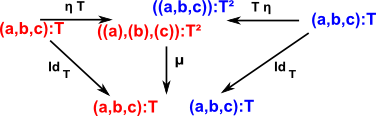

This satisfies the left and right triangle identities: monad for monoid
and the associative square:

Example 7 - Monad on Poset

An endofunctor on posets models closure. Posets don't have loops, therefore defined by fixpoints.

Define T: P -> P

with

  • x <= T x
  • T² x <= T x

gives

T² <= T (that is it is idempotent)

poset

Which gives an adjunction: tleft adjointi

This is discussed as an adjunction on page here.

Monads for Different Theories

  Monad for Monoid Monad for Small Categories
C List Graph
1 empty list
T list of elements free category on a graph
list of list of elements
unit (in algebra not monad) wrap in a list identity functor
multiplication (in algebra not monad) flatten (remove inner brackets) composition of two functors
unit µ for monad
multiplication η for monad




Computer Implementation of Algebra

More information about recursive types on this page.

Requires a carrier type to be defined then we need the algebra to be defined like this:

Monoid

data MonF a = MEmpty | MAppend a a

Ring

data RingF a = RZero | ROne | RNeg a | RAdd a a | Rmull a a

To make this into an expression we need a recursive definition :

Monoid

data MonExpr = MEmpty | MAppend Expr Expr

Ring

data RingExpr = RZero | ROne | RNeg RingExpr |
	          RAdd RingExpr RingExpr | Rmull RingExpr RingExpr
