Ecore Diag

It can be useful to be able to see a diagram representation of our ecore model.

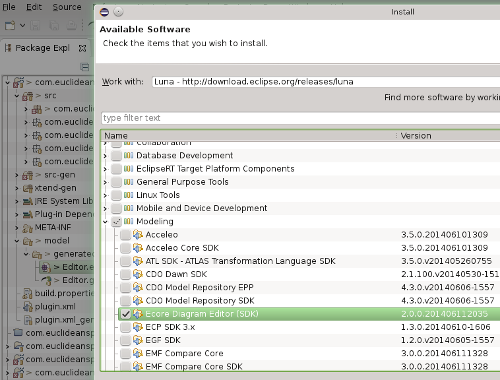

If the Ecore editor is not already installed then install it: ecore diag

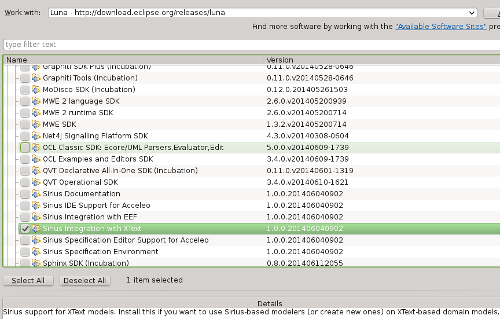

Because I'm using Xtext I also installed 'Sirus integration with Xtext' ecore diagram

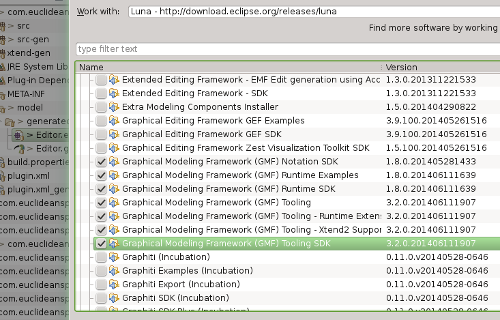

I also installed GMF ecore diagram

Once these are installed and Eclipse is installed and restarted we can create the diagram:

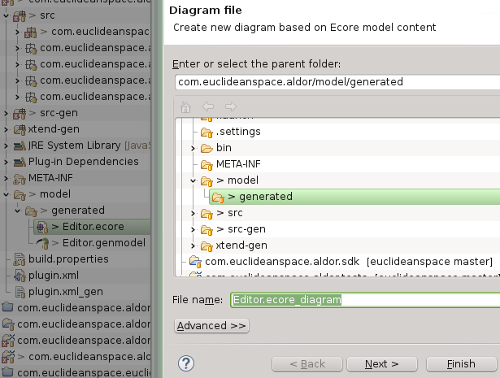

To create a diagram from an '.ecore' file then right-click on the .ecore model file and click: 'Initialise Ecore Diag file' ecore diagram

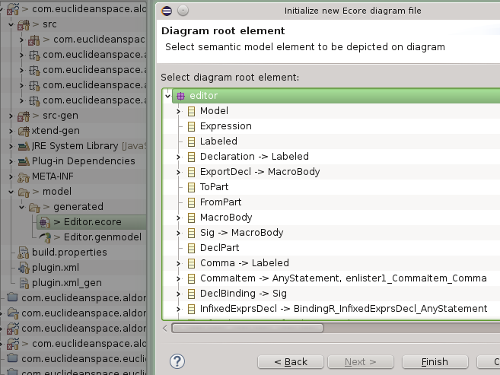

I selected the root element ecore diagram

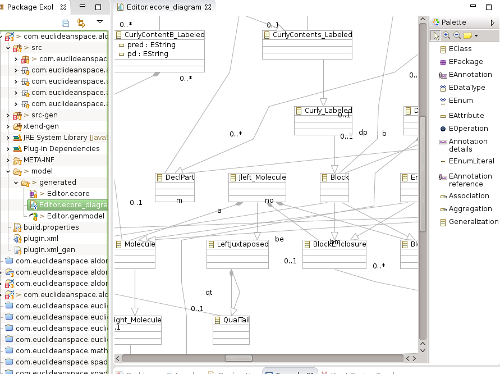

This produced the diagram ecore diagram

Alternative using Sirus

It should also be posible to produce diagram using Sirus:

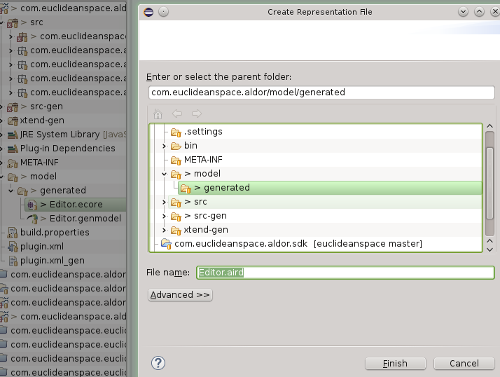

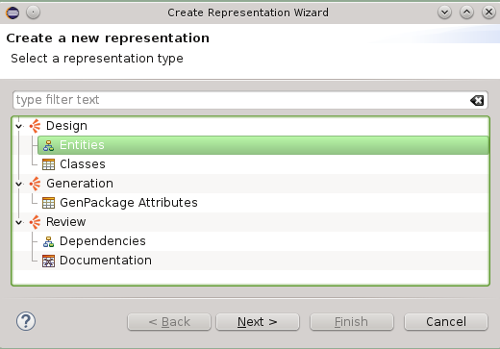

To create a diagram from an '.ecore' file then right-click on the file and click: 'Initialise Ecore Diag ...' ecore diag

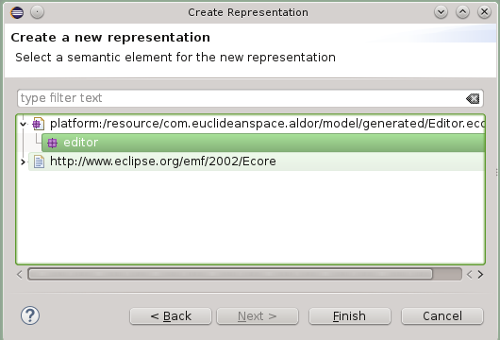

  ecore diag
  ecore diag
  ecore diag
