Eclipse Link Target Mapping

I am trying to work out how to setup link mapping so that I can draw a link on the diagram to setup a reference between two nodes. (i.e. drag the little square handle on the source to the destination) .

This works fine when I specifically define the reference to be exactly the destination class, but I want the reference definition to be the superclass of the destination, if I do this dragging the link no longer works.

In order to test this out I have defined 4 very simple classes using the annotated Interfaces below. I want to drag a link from a MSubNodeS instance to a MSubNodeD instance and for this to put a reference to the MSubNodeD into MSubNodeS.link.

This won't work as I have it defined below, but it will work if I change:

MSubNode getLink();

to

MSubNodeD getLink();

What I would like is if I drag a link from a MSubNodeS instance to a MSubNodeD instance then it will set link to be a MSubNodeD reference and if I drag a link from a MSubNodeS instance to another MSubNodeS instance then it will set link to be a MSubNodeS reference.

Base class:

/** @model */
public interface MNode extends EObject {
  /** @model */
  String getName();
  /** @model  containment="true" */
  EList<MSubNodeS> getSubNodeS();
  /** @model  containment="true" */
  EList<MSubNodeD> getSubNodeD();
}

Super Class:

/** @model */
public interface MSubNode extends EObject {
/** @model */ String getName(); }

Destination Class:

/**  @model */
  public interface MSubNodeD extends MSubNode {
}

Source Class:

/**  @model */
public interface MSubNodeS extends MSubNode {
/**  @model */
  MSubNode getLink();
}

If you would like to try this I have put these interfaces into a zip file here.

Can I do this? If so can you see what I am doing wrong?

In orger to get this example to work I needed to patch the code generated by gmf, I modified the following class:

package: mathModel.diagram.providers
class: MathModelModelingAssistantProvider

from: these are the 4 methods generated by gmf from the interfaces above, with this code link drag does not work:

public List getRelTypesOnTarget(IAdaptable target) {
         IGraphicalEditPart targetEditPart = (IGraphicalEditPart) target
         .getAdapter(IGraphicalEditPart.class);
         return Collections.EMPTY_LIST;
         }
 public List getRelTypesOnSourceAndTarget(IAdaptable source,
           IAdaptable target) {
           IGraphicalEditPart sourceEditPart = (IGraphicalEditPart) source
           .getAdapter(IGraphicalEditPart.class);
           IGraphicalEditPart targetEditPart = (IGraphicalEditPart) target
           .getAdapter(IGraphicalEditPart.class);
           if (sourceEditPart instanceof mathModel.diagram.edit.parts.MSubNodeSEditPart) {
           List types = new ArrayList();
           return types;
           }
           return Collections.EMPTY_LIST;
           }
 public List getTypesForSource(IAdaptable target,
           IElementType relationshipType) {
           IGraphicalEditPart targetEditPart = (IGraphicalEditPart) target
           .getAdapter(IGraphicalEditPart.class);
           return Collections.EMPTY_LIST;
           }
 public List getTypesForTarget(IAdaptable source,
           IElementType relationshipType) {
           IGraphicalEditPart sourceEditPart = (IGraphicalEditPart) source
           .getAdapter(IGraphicalEditPart.class);
           if (sourceEditPart instanceof mathModel.diagram.edit.parts.MSubNodeSEditPart) {
           List types = new ArrayList();
           return types;
           }
           return Collections.EMPTY_LIST;
         }

to: this is how I have to edit the 4 methods to get link drag to work:

public List getRelTypesOnTarget(IAdaptable target) {
         IGraphicalEditPart targetEditPart = (IGraphicalEditPart) target
         .getAdapter(IGraphicalEditPart.class);
         if (targetEditPart instanceof mathModel.diagram.edit.parts.MSubNodeDEditPart) {
         List types = new ArrayList();
         types.add(mathModel.diagram.providers.MathModelElementTypes.MSubNodeSLink_3001);
         return types;
         }
         return Collections.EMPTY_LIST;
         }
 /**
           * @generated
           */
           public List getRelTypesOnSourceAndTarget(IAdaptable source,
           IAdaptable target) {
           IGraphicalEditPart sourceEditPart = (IGraphicalEditPart) source
           .getAdapter(IGraphicalEditPart.class);
           IGraphicalEditPart targetEditPart = (IGraphicalEditPart) target
           .getAdapter(IGraphicalEditPart.class);
           if (sourceEditPart instanceof mathModel.diagram.edit.parts.MSubNodeSEditPart) {
           List types = new ArrayList();
           if (targetEditPart instanceof mathModel.diagram.edit.parts.MSubNodeDEditPart) {
           types.add(mathModel.diagram.providers.MathModelElementTypes.MSubNodeSLink_3001);
           }
           return types;
           }
           return Collections.EMPTY_LIST;
           }
 /**
           * @generated
           */
           public List getTypesForSource(IAdaptable target,
           IElementType relationshipType) {
           IGraphicalEditPart targetEditPart = (IGraphicalEditPart) target
           .getAdapter(IGraphicalEditPart.class);
           if (targetEditPart instanceof mathModel.diagram.edit.parts.MSubNodeDEditPart) {
           List types = new ArrayList();
           if (relationshipType == mathModel.diagram.providers.MathModelElementTypes.MSubNodeSLink_3001) {
           types.add(mathModel.diagram.providers.MathModelElementTypes.MSubNodeS_1002);
           }
           return types;
           }
           return Collections.EMPTY_LIST;
           }
 /**
           * @generated
           */
           public List getTypesForTarget(IAdaptable source,
           IElementType relationshipType) {
           IGraphicalEditPart sourceEditPart = (IGraphicalEditPart) source
           .getAdapter(IGraphicalEditPart.class);
           if (sourceEditPart instanceof mathModel.diagram.edit.parts.MSubNodeSEditPart) {
           List types = new ArrayList();
           if (relationshipType == mathModel.diagram.providers.MathModelElementTypes.MSubNodeSLink_3001) {
           types.add(mathModel.diagram.providers.MathModelElementTypes.MSubNodeD_1001);
           }
           return types;
           }
           return Collections.EMPTY_LIST;
         }

More info about configuration:

mathModel.ecore

ecore defines the metamodel, elements, attributes, references and so on.

<?xml version="1.0" encoding="UTF-8"?>
<ecore:EPackage xmi:version="2.0"
xmlns:xmi="http://www.omg.org/XMI" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:ecore="http://www.eclipse.org/emf/2002/Ecore" name="mathModel"
nsURI="http:///mathModel.ecore" nsPrefix="mathModel">
<eClassifiers xsi:type="ecore:EClass" name="MNode">
<eStructuralFeatures xsi:type="ecore:EAttribute" name="name" eType="ecore:EDataType http://www.eclipse.org/emf/2002/Ecore#//EString"/>
<eStructuralFeatures xsi:type="ecore:EReference" name="subNodeS" upperBound="-1"
eType="#//MSubNodeS" containment="true" resolveProxies="false"/>
<eStructuralFeatures xsi:type="ecore:EReference" name="subNodeD" upperBound="-1"
eType="#//MSubNodeD" containment="true" resolveProxies="false"/>
</eClassifiers>
<eClassifiers xsi:type="ecore:EClass" name="MSubNode">
<eStructuralFeatures xsi:type="ecore:EAttribute" name="name" eType="ecore:EDataType http://www.eclipse.org/emf/2002/Ecore#//EString"/>
</eClassifiers>
<eClassifiers xsi:type="ecore:EClass" name="MSubNodeD" eSuperTypes="#//MSubNode"/>
<eClassifiers xsi:type="ecore:EClass" name="MSubNodeS" eSuperTypes="#//MSubNode">
<eStructuralFeatures xsi:type="ecore:EReference" name="link" eType="#//MSubNode"/>
</eClassifiers>
</ecore:EPackage>



mathModel.genmodel

genmodel is more like java code with packages, classes and 'features'

<?xml version="1.0" encoding="UTF-8"?>
<genmodel:GenModel xmi:version="2.0"
xmlns:xmi="http://www.omg.org/XMI" xmlns:ecore="http://www.eclipse.org/emf/2002/Ecore"
xmlns:genmodel="http://www.eclipse.org/emf/2002/GenModel" modelDirectory="/com.mjb.es3/src"
modelPluginID="com.mjb.es3" modelName="MathModel" importerID="org.eclipse.emf.importer.java"
complianceLevel="6.0" copyrightFields="false">
<foreignModel>@model</foreignModel>
<genPackages prefix="MathModel" disposableProviderFactory="true" ecorePackage="mathModel.ecore#/">
<genClasses ecoreClass="mathModel.ecore#//MNode">
<genFeatures createChild="false" ecoreFeature="ecore:EAttribute mathModel.ecore#//MNode/name"/>
<genFeatures property="None" children="true" createChild="true" ecoreFeature="ecore:EReference mathModel.ecore#//MNode/subNodeS"/>
<genFeatures property="None" children="true" createChild="true" ecoreFeature="ecore:EReference mathModel.ecore#//MNode/subNodeD"/>
</genClasses>
<genClasses ecoreClass="mathModel.ecore#//MSubNode">
<genFeatures createChild="false" ecoreFeature="ecore:EAttribute mathModel.ecore#//MSubNode/name"/>
</genClasses>
<genClasses ecoreClass="mathModel.ecore#//MSubNodeD"/>
<genClasses ecoreClass="mathModel.ecore#//MSubNodeS">
<genFeatures notify="false" createChild="false" propertySortChoices="true" ecoreFeature="ecore:EReference mathModel.ecore#//MSubNodeS/link"/>
</genClasses>
</genPackages>
</genmodel:GenModel>

mathModel.gmfgraph

The .gmfgraph file defines a graphical view of the model.

gmfgraph has:

<?xml version="1.0" encoding="UTF-8"?>
<gmfgraph:Canvas xmi:version="2.0"
xmlns:xmi="http://www.omg.org/XMI"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:gmfgraph="http://www.eclipse.org/gmf/2006/GraphicalDefinition" name="mathModel">
<figures
name="Default">
<figures
xsi:type="gmfgraph:PolylineDecoration"
name="MSubNodeSLinkTargetDecoration"/>
<descriptors
name="MSubNodeDFigure">
<actualFigure
xsi:type="gmfgraph:Rectangle"
name="MSubNodeDFigure">
<layout
xsi:type="gmfgraph:FlowLayout"/>
<children
xsi:type="gmfgraph:Label"
name="MSubNodeDNameFigure"
text="&lt;...>"/>
</actualFigure>
<accessors
figure="//@figures.0/@descriptors.0/@actualFigure/@children.0"/>
</descriptors>
<descriptors
name="MSubNodeSFigure">
<actualFigure
xsi:type="gmfgraph:Rectangle"
name="MSubNodeSFigure">
<layout
xsi:type="gmfgraph:FlowLayout"/>
<children
xsi:type="gmfgraph:Label"
name="MSubNodeSNameFigure"
text="&lt;...>"/>
</actualFigure>
<accessors
figure="//@figures.0/@descriptors.1/@actualFigure/@children.0"/>
</descriptors>
<descriptors
name="MSubNodeSLinkFigure">
<actualFigure
xsi:type="gmfgraph:PolylineConnection"
name="MSubNodeSLinkFigure"
targetDecoration="//@figures.0/@figures.0"/>
</descriptors>
</figures>
<nodes
name="MSubNodeD"
figure="MSubNodeDFigure"/>
<nodes
name="MSubNodeS"
figure="MSubNodeSFigure"/>
<connections
name="MSubNodeSLink"
figure="MSubNodeSLinkFigure"/>
<labels
name="MSubNodeDName"
figure="MSubNodeDFigure"
accessor="//@figures.0/@descriptors.0/@accessors.0"/>
<labels
name="MSubNodeSName"
figure="MSubNodeSFigure"
accessor="//@figures.0/@descriptors.1/@accessors.0"/>
</gmfgraph:Canvas>

mathModel.gmftool

Defines tools such as the pallette for creating new nodes and links

<?xml version="1.0" encoding="UTF-8"?>
<gmftool:ToolRegistry xmi:version="2.0"
xmlns:xmi="http://www.omg.org/XMI"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:gmftool="http://www.eclipse.org/gmf/2005/ToolDefinition">
<palette
title="mathModelPalette">
<tools
xsi:type="gmftool:ToolGroup"
title="mathModel">
<tools
xsi:type="gmftool:CreationTool"
title="MSubNodeD"
description="Create new MSubNodeD">
<smallIcon
xsi:type="gmftool:DefaultImage"/>
<largeIcon
xsi:type="gmftool:DefaultImage"/>
</tools>
<tools
xsi:type="gmftool:CreationTool"
title="MSubNodeS"
description="Create new MSubNodeS">
<smallIcon
xsi:type="gmftool:DefaultImage"/>
<largeIcon
xsi:type="gmftool:DefaultImage"/>
</tools>
</tools>
</palette>
</gmftool:ToolRegistry>



mathModel.gmfmap

gmfmap maps the pallete and the graphical objects to the ecore metamodel.

nodes, links and diagram

<?xml version="1.0" encoding="UTF-8"?>
<gmfmap:Mapping xmi:version="2.0"
xmlns:xmi="http://www.omg.org/XMI"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:ecore="http://www.eclipse.org/emf/2002/Ecore"
xmlns:gmfmap="http://www.eclipse.org/gmf/2008/mappings"
xmlns:gmftool="http://www.eclipse.org/gmf/2005/ToolDefinition">
<nodes>
<containmentFeature
href="mathModel.ecore#//MNode/subNodeD"/>
<ownedChild>
<domainMetaElement
href="mathModel.ecore#//MSubNodeD"/>
<labelMappings
xsi:type="gmfmap:FeatureLabelMapping">
<diagramLabel
href="mathModel.gmfgraph#MSubNodeDName"/>
<features
href="mathModel.ecore#//MSubNode/name"/>
</labelMappings>
<tool
xsi:type="gmftool:CreationTool"
href="mathModel.gmftool#//@palette/@tools.0/@tools.0"/>
<diagramNode
href="mathModel.gmfgraph#MSubNodeD"/>
</ownedChild>
</nodes>
<nodes>
<containmentFeature
href="mathModel.ecore#//MNode/subNodeS"/>
<ownedChild>
<domainMetaElement
href="mathModel.ecore#//MSubNodeS"/>
<labelMappings
xsi:type="gmfmap:FeatureLabelMapping">
<diagramLabel
href="mathModel.gmfgraph#MSubNodeSName"/>
<features
href="mathModel.ecore#//MSubNode/name"/>
</labelMappings>
<tool
xsi:type="gmftool:CreationTool"
href="mathModel.gmftool#//@palette/@tools.0/@tools.1"/>
<diagramNode
href="mathModel.gmfgraph#MSubNodeS"/>
</ownedChild>
</nodes>
<links>
<tool
xsi:type="gmftool:CreationTool"
href="mathModel.gmftool#//@palette/@tools.0/@tools.0"/>
<diagramLink
href="mathModel.gmfgraph#MSubNodeSLink"/>
<linkMetaFeature
xsi:type="ecore:EReference"
href="mathModel.ecore#//MSubNodeS/link"/>
</links>
<diagram>
<diagramCanvas
href="mathModel.gmfgraph#mathModel"/>
<domainModel
href="mathModel.ecore#/"/>
<domainMetaElement
href="mathModel.ecore#//MNode"/>
<palette
href="mathModel.gmftool#//@palette"/>
</diagram>
</gmfmap:Mapping>



mathModel.gmfgen

<?xml version="1.0" encoding="UTF-8"?>
<gmfgen:GenEditorGenerator xmi:version="2.0" xmlns:xmi="http://www.omg.org/XMI" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:gmfgen="http://www.eclipse.org/gmf/2008/GenModel">
<diagram visualID="79" editPartClassName="MNodeEditPart" itemSemanticEditPolicyClassName="MNodeItemSemanticEditPolicy" notationViewFactoryClassName="MNodeViewFactory" canonicalEditPolicyClassName="MNodeCanonicalEditPolicy" iconProviderPriority="Low" validationProviderPriority="Low">
<diagramRunTimeClass href="../../../plugin/org.eclipse.gmf.runtime.notation/model/notation.genmodel#//notation/Diagram"/>
<elementType xsi:type="gmfgen:MetamodelType" editHelperClassName="MNodeEditHelper"/>
<viewmap xsi:type="gmfgen:FigureViewmap" figureQualifiedClassName="org.eclipse.draw2d.FreeformLayer"/>
<domainDiagramElement href="mathModel.genmodel#//mathModel/MNode"/>
<topLevelNodes visualID="1001" editPartClassName="MSubNodeDEditPart" itemSemanticEditPolicyClassName="MSubNodeDItemSemanticEditPolicy" notationViewFactoryClassName="MSubNodeDViewFactory" canonicalEditPolicyClassName="MSubNodeDCanonicalEditPolicy" graphicalNodeEditPolicyClassName="MSubNodeDGraphicalNodeEditPolicy" createCommandClassName="MSubNodeDCreateCommand">
<diagramRunTimeClass href="../../../plugin/org.eclipse.gmf.runtime.notation/model/notation.genmodel#//notation/Node"/>
<elementType xsi:type="gmfgen:MetamodelType" editHelperClassName="MSubNodeDEditHelper"/>
<viewmap xsi:type="gmfgen:InnerClassViewmap" layoutType="FLOW_LAYOUT" className="MSubNodeDFigure" classBody="&#xA;/**&#xA; * @generated&#xA; */&#xA;public class MSubNodeDFigure extends org.eclipse.draw2d.RectangleFigure {&#xA;&#xA;&#xA;&#x9;/**&#xA;&#x9; * @generated&#xA;&#x9; */&#xA;&#x9;private org.eclipse.draw2d.Label fFigureMSubNodeDNameFigure; &#xA;&#xA;&#xA;&#x9;/**&#xA;&#x9; * @generated&#xA;&#x9; */&#xA;&#x9;public MSubNodeDFigure() {&#xA;&#x9;&#x9;&#xA;&#x9;org.eclipse.draw2d.FlowLayout layoutThis = new org.eclipse.draw2d.FlowLayout();&#xA;&#x9;layoutThis.setStretchMinorAxis(false);&#xA;&#x9;layoutThis.setMinorAlignment(org.eclipse.draw2d.FlowLayout.ALIGN_LEFTTOP&#xA;);&#xA;&#xA;&#x9;layoutThis.setMajorAlignment(org.eclipse.draw2d.FlowLayout.ALIGN_LEFTTOP&#xA;);&#xA;&#x9;layoutThis.setMajorSpacing(5);&#xA;&#x9;layoutThis.setMinorSpacing(5);&#xA;&#x9;layoutThis.setHorizontal(true);&#xA;&#xA;&#x9;this.setLayoutManager(layoutThis);&#xA;&#xA;&#x9;&#x9;&#x9;&#x9;createContents();&#xA;&#x9;}&#xA;&#x9;/**&#xA;&#x9; * @generated&#xA;&#x9; */&#xA;&#x9;private void createContents(){&#xA;&#xA;&#xA;fFigureMSubNodeDNameFigure = new org.eclipse.draw2d.Label();&#xA;fFigureMSubNodeDNameFigure.setText(&quot;&lt;...>&quot;);&#xA;&#xA;this.add(fFigureMSubNodeDNameFigure);&#xA;&#xA;&#xA;&#x9;}&#xA;&#xA;&#xA;&#xA;&#xA;&#x9;/**&#xA;&#x9; * @generated&#xA;&#x9; */&#xA;&#x9;private boolean myUseLocalCoordinates = false;&#xA;&#xA;&#x9;/**&#xA;&#x9; * @generated&#xA;&#x9; */&#xA;&#x9;protected boolean useLocalCoordinates() {&#xA;&#x9;&#x9;return myUseLocalCoordinates;&#xA;&#x9;}&#xA;&#xA;&#x9;/**&#xA;&#x9; * @generated&#xA;&#x9; */&#xA;&#x9;protected void setUseLocalCoordinates(boolean useLocalCoordinates) {&#xA;&#x9;&#x9;myUseLocalCoordinates = useLocalCoordinates;&#xA;&#x9;}&#xA;&#xA;&#xA;&#xA;&#x9;/**&#xA;&#x9; * @generated&#xA;&#x9; */&#xA;&#x9;public org.eclipse.draw2d.Label getFigureMSubNodeDNameFigure() {&#xA;&#x9;&#x9;return fFigureMSubNodeDNameFigure;&#xA;&#x9;}&#xA;&#xA;&#xA;}&#xA;&#xA;">
<requiredPluginIDs>org.eclipse.draw2d</requiredPluginIDs>
</viewmap>
<modelFacet>
<metaClass href="mathModel.genmodel#//mathModel/MSubNodeD"/>
<containmentMetaFeature href="mathModel.genmodel#//mathModel/MNode/subNodeD"/>
<childMetaFeature href="mathModel.genmodel#//mathModel/MNode/subNodeD"/>
</modelFacet>
<labels visualID="4001" editPartClassName="MSubNodeDNameEditPart" itemSemanticEditPolicyClassName="MSubNodeDNameItemSemanticEditPolicy" notationViewFactoryClassName="MSubNodeDNameViewFactory" elementIcon="true">
<diagramRunTimeClass href="../../../plugin/org.eclipse.gmf.runtime.notation/model/notation.genmodel#//notation/Node"/>
<viewmap xsi:type="gmfgen:ParentAssignedViewmap" getterName="getFigureMSubNodeDNameFigure" figureQualifiedClassName="org.eclipse.draw2d.Label"/>
<modelFacet xsi:type="gmfgen:FeatureLabelModelFacet">
<metaFeatures href="mathModel.genmodel#//mathModel/MSubNode/name"/>
</modelFacet>
</labels>
</topLevelNodes>
<topLevelNodes visualID="1002" editPartClassName="MSubNodeSEditPart" itemSemanticEditPolicyClassName="MSubNodeSItemSemanticEditPolicy" notationViewFactoryClassName="MSubNodeSViewFactory" canonicalEditPolicyClassName="MSubNodeSCanonicalEditPolicy" graphicalNodeEditPolicyClassName="MSubNodeSGraphicalNodeEditPolicy" createCommandClassName="MSubNodeSCreateCommand">
<diagramRunTimeClass href="../../../plugin/org.eclipse.gmf.runtime.notation/model/notation.genmodel#//notation/Node"/>
<elementType xsi:type="gmfgen:MetamodelType" editHelperClassName="MSubNodeSEditHelper"/>
<viewmap xsi:type="gmfgen:InnerClassViewmap" layoutType="FLOW_LAYOUT" className="MSubNodeSFigure" classBody="&#xA;/**&#xA; * @generated&#xA; */&#xA;public class MSubNodeSFigure extends org.eclipse.draw2d.RectangleFigure {&#xA;&#xA;&#xA;&#x9;/**&#xA;&#x9; * @generated&#xA;&#x9; */&#xA;&#x9;private org.eclipse.draw2d.Label fFigureMSubNodeSNameFigure; &#xA;&#xA;&#xA;&#x9;/**&#xA;&#x9; * @generated&#xA;&#x9; */&#xA;&#x9;public MSubNodeSFigure() {&#xA;&#x9;&#x9;&#xA;&#x9;org.eclipse.draw2d.FlowLayout layoutThis = new org.eclipse.draw2d.FlowLayout();&#xA;&#x9;layoutThis.setStretchMinorAxis(false);&#xA;&#x9;layoutThis.setMinorAlignment(org.eclipse.draw2d.FlowLayout.ALIGN_LEFTTOP&#xA;);&#xA;&#xA;&#x9;layoutThis.setMajorAlignment(org.eclipse.draw2d.FlowLayout.ALIGN_LEFTTOP&#xA;);&#xA;&#x9;layoutThis.setMajorSpacing(5);&#xA;&#x9;layoutThis.setMinorSpacing(5);&#xA;&#x9;layoutThis.setHorizontal(true);&#xA;&#xA;&#x9;this.setLayoutManager(layoutThis);&#xA;&#xA;&#x9;&#x9;&#x9;&#x9;createContents();&#xA;&#x9;}&#xA;&#x9;/**&#xA;&#x9; * @generated&#xA;&#x9; */&#xA;&#x9;private void createContents(){&#xA;&#xA;&#xA;fFigureMSubNodeSNameFigure = new org.eclipse.draw2d.Label();&#xA;fFigureMSubNodeSNameFigure.setText(&quot;&lt;...>&quot;);&#xA;&#xA;this.add(fFigureMSubNodeSNameFigure);&#xA;&#xA;&#xA;&#x9;}&#xA;&#xA;&#xA;&#xA;&#xA;&#x9;/**&#xA;&#x9; * @generated&#xA;&#x9; */&#xA;&#x9;private boolean myUseLocalCoordinates = false;&#xA;&#xA;&#x9;/**&#xA;&#x9; * @generated&#xA;&#x9; */&#xA;&#x9;protected boolean useLocalCoordinates() {&#xA;&#x9;&#x9;return myUseLocalCoordinates;&#xA;&#x9;}&#xA;&#xA;&#x9;/**&#xA;&#x9; * @generated&#xA;&#x9; */&#xA;&#x9;protected void setUseLocalCoordinates(boolean useLocalCoordinates) {&#xA;&#x9;&#x9;myUseLocalCoordinates = useLocalCoordinates;&#xA;&#x9;}&#xA;&#xA;&#xA;&#xA;&#x9;/**&#xA;&#x9; * @generated&#xA;&#x9; */&#xA;&#x9;public org.eclipse.draw2d.Label getFigureMSubNodeSNameFigure() {&#xA;&#x9;&#x9;return fFigureMSubNodeSNameFigure;&#xA;&#x9;}&#xA;&#xA;&#xA;}&#xA;&#xA;">
<requiredPluginIDs>org.eclipse.draw2d</requiredPluginIDs>
</viewmap>
<modelFacet>
<metaClass href="mathModel.genmodel#//mathModel/MSubNodeS"/>
<containmentMetaFeature href="mathModel.genmodel#//mathModel/MNode/subNodeS"/>
<childMetaFeature href="mathModel.genmodel#//mathModel/MNode/subNodeS"/>
</modelFacet>
<labels visualID="4002" editPartClassName="MSubNodeSNameEditPart" itemSemanticEditPolicyClassName="MSubNodeSNameItemSemanticEditPolicy" notationViewFactoryClassName="MSubNodeSNameViewFactory" elementIcon="true">
<diagramRunTimeClass href="../../../plugin/org.eclipse.gmf.runtime.notation/model/notation.genmodel#//notation/Node"/>
<viewmap xsi:type="gmfgen:ParentAssignedViewmap" getterName="getFigureMSubNodeSNameFigure" figureQualifiedClassName="org.eclipse.draw2d.Label"/>
<modelFacet xsi:type="gmfgen:FeatureLabelModelFacet">
<metaFeatures href="mathModel.genmodel#//mathModel/MSubNode/name"/>
</modelFacet>
</labels>
</topLevelNodes>
<links visualID="3001" editPartClassName="MSubNodeSLinkEditPart" itemSemanticEditPolicyClassName="MSubNodeSLinkItemSemanticEditPolicy" notationViewFactoryClassName="MSubNodeSLinkViewFactory" createCommandClassName="MSubNodeSLinkCreateCommand" reorientCommandClassName="MSubNodeSLinkReorientCommand">
<diagramRunTimeClass href="../../../plugin/org.eclipse.gmf.runtime.notation/model/notation.genmodel#//notation/Edge"/>
<elementType xsi:type="gmfgen:SpecializationType"/>
<viewmap xsi:type="gmfgen:InnerClassViewmap" className="MSubNodeSLinkFigure" classBody="&#xA;/**&#xA; * @generated&#xA; */&#xA;public class MSubNodeSLinkFigure extends org.eclipse.draw2d.PolylineConnection {&#xA;&#xA;&#xA;&#xA;&#xA;&#x9;/**&#xA;&#x9; * @generated&#xA;&#x9; */&#xA;&#x9;public MSubNodeSLinkFigure() {&#xA;&#x9;&#x9;&#xA;&#x9;&#x9;setTargetDecoration(createTargetDecoration());&#xA;&#x9;}&#xA;&#xA;&#x9;/**&#xA;&#x9; * @generated&#xA;&#x9; */&#xA;&#x9;private org.eclipse.draw2d.RotatableDecoration createTargetDecoration() {&#xA;&#x9;&#x9;org.eclipse.draw2d.PolylineDecoration df = new org.eclipse.draw2d.PolylineDecoration();&#xA;&#x9;&#x9;return df;&#xA;&#x9;}&#xA;&#xA;&#xA;&#xA;&#xA;}&#xA;&#xA;">
<requiredPluginIDs>org.eclipse.draw2d</requiredPluginIDs>
</viewmap>
<modelFacet xsi:type="gmfgen:FeatureLinkModelFacet">
<metaFeature href="mathModel.genmodel#//mathModel/MSubNodeS/link"/>
</modelFacet>
</links>
<palette>
<groups title="mathModel">
<entries xsi:type="gmfgen:ToolEntry" title="MSubNodeD" description="Create new MSubNodeD" genNodes="//@diagram/@topLevelNodes.0" genLinks="//@diagram/@links.0"/>
<entries xsi:type="gmfgen:ToolEntry" title="MSubNodeS" description="Create new MSubNodeS" genNodes="//@diagram/@topLevelNodes.1"/>
</groups>
</palette>
<preferencePages xsi:type="gmfgen:GenStandardPreferencePage" iD="com.mjb.es3.diagram.general" name="MathModel Diagram">
<children xsi:type="gmfgen:GenStandardPreferencePage" iD="com.mjb.es3.diagram.appearance" name="Appearance" kind="Appearance"/>
<children xsi:type="gmfgen:GenStandardPreferencePage" iD="com.mjb.es3.diagram.connections" name="Connections" kind="Connections"/>
<children xsi:type="gmfgen:GenStandardPreferencePage" iD="com.mjb.es3.diagram.printing" name="Printing" kind="Printing"/>
<children xsi:type="gmfgen:GenStandardPreferencePage" iD="com.mjb.es3.diagram.rulersAndGrid" name="Rulers And Grid" kind="RulersAndGrid"/>
<children xsi:type="gmfgen:GenStandardPreferencePage" iD="com.mjb.es3.diagram.pathmaps" name="Pathmaps" kind="Pathmaps"/>
</preferencePages>
</diagram>
<plugin/>
<editor/>
<diagramUpdater/>
<propertySheet>
<tabs xsi:type="gmfgen:GenStandardPropertyTab" iD="appearance"/>
<tabs xsi:type="gmfgen:GenStandardPropertyTab" iD="diagram"/>
<tabs xsi:type="gmfgen:GenCustomPropertyTab" iD="domain" label="Core">
<filter xsi:type="gmfgen:TypeTabFilter">
<types>org.eclipse.gmf.runtime.notation.View</types>
<types>org.eclipse.gef.EditPart</types>
</filter>
</tabs>
</propertySheet>
<application>
<sharedContributionItems xsi:type="gmfgen:GenActionFactoryContributionItem" name="CLOSE"/>
<sharedContributionItems xsi:type="gmfgen:GenActionFactoryContributionItem" name="CLOSE_ALL"/>
<sharedContributionItems xsi:type="gmfgen:GenActionFactoryContributionItem" name="SAVE"/>
<sharedContributionItems xsi:type="gmfgen:GenActionFactoryContributionItem" name="SAVE_AS"/>
<sharedContributionItems xsi:type="gmfgen:GenActionFactoryContributionItem" name="SAVE_ALL"/>
<sharedContributionItems xsi:type="gmfgen:GenActionFactoryContributionItem" name="QUIT"/>
<sharedContributionItems xsi:type="gmfgen:GenActionFactoryContributionItem" name="UNDO"/>
<sharedContributionItems xsi:type="gmfgen:GenActionFactoryContributionItem" name="REDO"/>
<sharedContributionItems xsi:type="gmfgen:GenActionFactoryContributionItem" name="CUT"/>
<sharedContributionItems xsi:type="gmfgen:GenActionFactoryContributionItem" name="COPY"/>
<sharedContributionItems xsi:type="gmfgen:GenActionFactoryContributionItem" name="PASTE"/>
<sharedContributionItems xsi:type="gmfgen:GenActionFactoryContributionItem" name="DELETE"/>
<sharedContributionItems xsi:type="gmfgen:GenActionFactoryContributionItem" name="SELECT_ALL"/>
<sharedContributionItems xsi:type="gmfgen:GenActionFactoryContributionItem" name="OPEN_NEW_WINDOW"/>
<sharedContributionItems xsi:type="gmfgen:GenActionFactoryContributionItem" name="PRINT"/>
<mainMenu>
<items xsi:type="gmfgen:GenMenuManager" iD="org.eclipse.ui.IWorkbenchActionConstants.M_FILE" name="&amp;File">
<items xsi:type="gmfgen:GenGroupMarker" groupName="org.eclipse.ui.IWorkbenchActionConstants.FILE_START"/>
<items xsi:type="gmfgen:GenMenuManager" iD="&quot;new&quot;" name="&amp;New">
<items xsi:type="gmfgen:GenGroupMarker" groupName="org.eclipse.ui.IWorkbenchActionConstants.MB_ADDITIONS"/>
</items>
<items xsi:type="gmfgen:GenSeparator"/>
<items xsi:type="gmfgen:GenGroupMarker" groupName="org.eclipse.ui.IWorkbenchActionConstants.MB_ADDITIONS"/>
<items xsi:type="gmfgen:GenSeparator"/>
<items xsi:type="gmfgen:GenSharedContributionItem" actualItem="//@application/@sharedContributionItems.0"/>
<items xsi:type="gmfgen:GenSharedContributionItem" actualItem="//@application/@sharedContributionItems.1"/>
<items xsi:type="gmfgen:GenSeparator"/>
<items xsi:type="gmfgen:GenSharedContributionItem" actualItem="//@application/@sharedContributionItems.2"/>
<items xsi:type="gmfgen:GenSharedContributionItem" actualItem="//@application/@sharedContributionItems.3"/>
<items xsi:type="gmfgen:GenSharedContributionItem" actualItem="//@application/@sharedContributionItems.4"/>
<items xsi:type="gmfgen:GenSeparator"/>
<items xsi:type="gmfgen:GenSharedContributionItem" actualItem="//@application/@sharedContributionItems.5"/>
<items xsi:type="gmfgen:GenGroupMarker" groupName="org.eclipse.ui.IWorkbenchActionConstants.FILE_END"/>
</items>
<items xsi:type="gmfgen:GenMenuManager" iD="org.eclipse.ui.IWorkbenchActionConstants.M_EDIT" name="&amp;Edit">
<items xsi:type="gmfgen:GenGroupMarker" groupName="org.eclipse.ui.IWorkbenchActionConstants.EDIT_START"/>
<items xsi:type="gmfgen:GenSharedContributionItem" actualItem="//@application/@sharedContributionItems.6"/>
<items xsi:type="gmfgen:GenSharedContributionItem" actualItem="//@application/@sharedContributionItems.7"/>
<items xsi:type="gmfgen:GenGroupMarker" groupName="org.eclipse.ui.IWorkbenchActionConstants.UNDO_EXT"/>
<items xsi:type="gmfgen:GenSeparator"/>
<items xsi:type="gmfgen:GenSharedContributionItem" actualItem="//@application/@sharedContributionItems.8"/>
<items xsi:type="gmfgen:GenSharedContributionItem" actualItem="//@application/@sharedContributionItems.9"/>
<items xsi:type="gmfgen:GenSharedContributionItem" actualItem="//@application/@sharedContributionItems.10"/>
<items xsi:type="gmfgen:GenGroupMarker" groupName="org.eclipse.ui.IWorkbenchActionConstants.CUT_EXT"/>
<items xsi:type="gmfgen:GenSeparator"/>
<items xsi:type="gmfgen:GenSharedContributionItem" actualItem="//@application/@sharedContributionItems.11"/>
<items xsi:type="gmfgen:GenSharedContributionItem" actualItem="//@application/@sharedContributionItems.12"/>
<items xsi:type="gmfgen:GenSeparator"/>
<items xsi:type="gmfgen:GenGroupMarker" groupName="org.eclipse.ui.IWorkbenchActionConstants.ADD_EXT"/>
<items xsi:type="gmfgen:GenGroupMarker" groupName="org.eclipse.ui.IWorkbenchActionConstants.EDIT_END"/>
<items xsi:type="gmfgen:GenSeparator" groupName="org.eclipse.ui.IWorkbenchActionConstants.MB_ADDITIONS"/>
</items>
<items xsi:type="gmfgen:GenGroupMarker" groupName="org.eclipse.ui.IWorkbenchActionConstants.MB_ADDITIONS"/>
<items xsi:type="gmfgen:GenMenuManager" iD="org.eclipse.ui.IWorkbenchActionConstants.M_WINDOW" name="&amp;Window">
<items xsi:type="gmfgen:GenSharedContributionItem" actualItem="//@application/@sharedContributionItems.13"/>
<items xsi:type="gmfgen:GenGroupMarker" groupName="org.eclipse.ui.IWorkbenchActionConstants.MB_ADDITIONS"/>
</items>
<items xsi:type="gmfgen:GenMenuManager" iD="org.eclipse.ui.IWorkbenchActionConstants.M_HELP" name="&amp;Help">
<items xsi:type="gmfgen:GenGroupMarker" groupName="org.eclipse.ui.IWorkbenchActionConstants.HELP_START"/>
<items xsi:type="gmfgen:GenGroupMarker" groupName="org.eclipse.ui.IWorkbenchActionConstants.HELP_END"/>
<items xsi:type="gmfgen:GenGroupMarker" groupName="org.eclipse.ui.IWorkbenchActionConstants.MB_ADDITIONS"/>
</items>
</mainMenu>
<mainToolBar>
<items xsi:type="gmfgen:GenGroupMarker" groupName="&quot;group.file&quot;"/>
<items xsi:type="gmfgen:GenToolBarManager" iD="org.eclipse.ui.IWorkbenchActionConstants.TOOLBAR_FILE">
<items xsi:type="gmfgen:GenSeparator" groupName="org.eclipse.ui.IWorkbenchActionConstants.NEW_GROUP"/>
<items xsi:type="gmfgen:GenGroupMarker" groupName="org.eclipse.ui.IWorkbenchActionConstants.NEW_EXT"/>
<items xsi:type="gmfgen:GenGroupMarker" groupName="org.eclipse.ui.IWorkbenchActionConstants.SAVE_GROUP"/>
<items xsi:type="gmfgen:GenSharedContributionItem" actualItem="//@application/@sharedContributionItems.2"/>
<items xsi:type="gmfgen:GenGroupMarker" groupName="org.eclipse.ui.IWorkbenchActionConstants.SAVE_EXT"/>
<items xsi:type="gmfgen:GenSharedContributionItem" actualItem="//@application/@sharedContributionItems.14"/>
<items xsi:type="gmfgen:GenGroupMarker" groupName="org.eclipse.ui.IWorkbenchActionConstants.PRINT_EXT"/>
<items xsi:type="gmfgen:GenSeparator" groupName="org.eclipse.ui.IWorkbenchActionConstants.MB_ADDITIONS"/>
</items>
<items xsi:type="gmfgen:GenGroupMarker" groupName="org.eclipse.ui.IWorkbenchActionConstants.MB_ADDITIONS"/>
<items xsi:type="gmfgen:GenGroupMarker" groupName="&quot;group.nav&quot;"/>
<items xsi:type="gmfgen:GenGroupMarker" groupName="org.eclipse.ui.IWorkbenchActionConstants.GROUP_EDITOR"/>
<items xsi:type="gmfgen:GenGroupMarker" groupName="org.eclipse.ui.IWorkbenchActionConstants.GROUP_HELP"/>
<items xsi:type="gmfgen:GenToolBarManager" iD="org.eclipse.ui.IWorkbenchActionConstants.TOOLBAR_HELP">
<items xsi:type="gmfgen:GenSeparator" groupName="org.eclipse.ui.IWorkbenchActionConstants.GROUP_HELP"/>
<items xsi:type="gmfgen:GenGroupMarker" groupName="org.eclipse.ui.IWorkbenchActionConstants.GROUP_APP"/>
</items>
</mainToolBar>
</application>
<domainGenModel href="mathModel.genmodel#/"/>
</gmfgen:GenEditorGenerator>

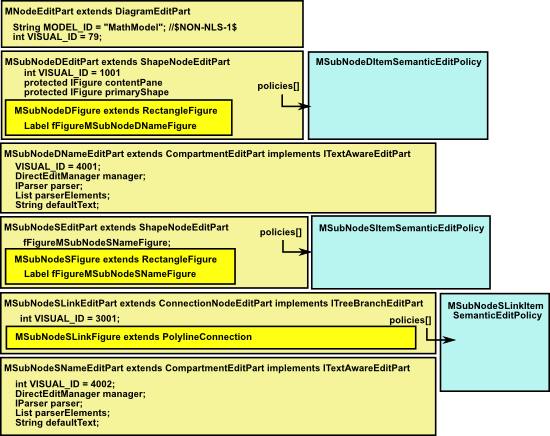

Edit Parts Generated

edit parts

Wizards

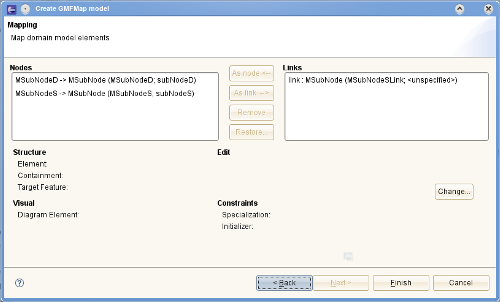

create gmfmap 1

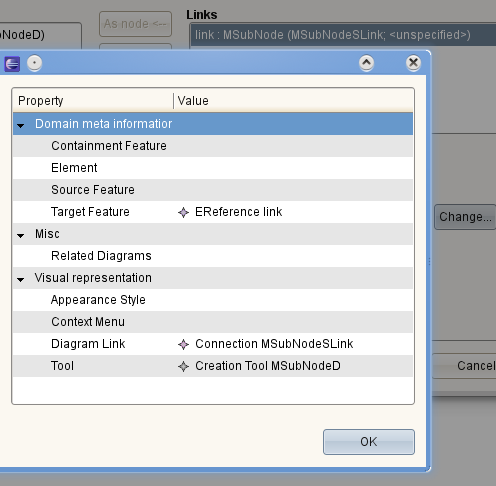

If I select the link and click on 'change' I get:

create gmfmap 2

Do I need to change this? If so, how?

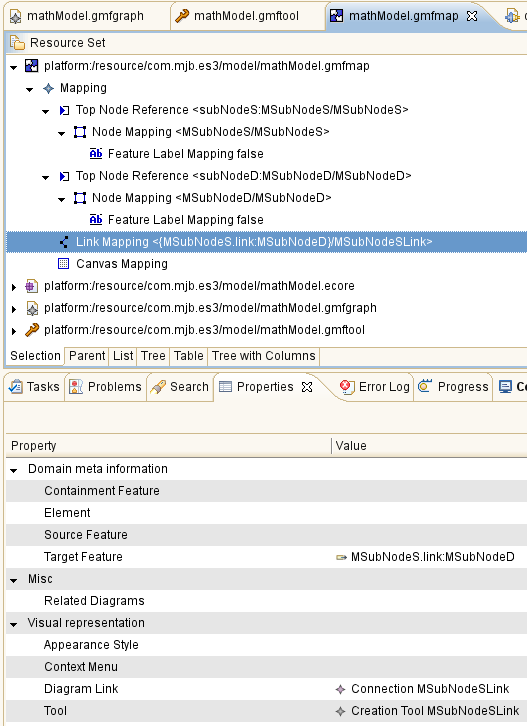

Explicit mapping (this works):

gmp explicit mapping

Link mapping to super class (This does not work):

link mapping to Super


metadata block
see also:
Correspondence about this page

This site may have errors. Don't use for critical systems.

Copyright (c) 1998-2022 Martin John Baker - All rights reserved - privacy policy.
